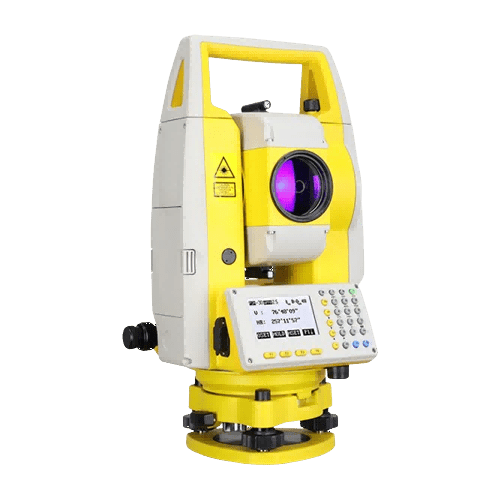

| Feature Category | Specification | NTS-332R10 | NTS-332R6 |
| Distance Measurement | Range | ||
| (With Cooperative Target) | Prism Set | 5000m | 5000m |
| Reflector (60mm×60mm) | 1000m | 1000m | |
| Accuracy | ±(2mm+2×10⁻⁶D) | ±(2mm+2×10⁻⁶D) | |
| Measurement Time | Continuous 0.35s, Tracking 0.2s, | Continuous 0.35s, Tracking 0.2s, | |
| Single <1.2s | Single <1.2s | ||
| Non-Prism Distance Measurement | Range (Kodak Gray, 90% reflectivity) | 1000m | 600m |
| (Without Cooperative Target) | Accuracy | 0-300m (3+2), 300-600m (5+2), | 0-300m (3+2), 300-600m (5+2), |
| >600m (10+2) | >600m (10+2) | ||
| Measurement Time | Continuous 0.35s, Tracking 0.2s, | Continuous 0.35s, Tracking 0.2s, | |
| Single <1.2s | Single <1.2s | ||
| Angle Measurement | Method | Absolute encoding | Absolute encoding |
| Disk Diameter | 79mm | 79mm | |
| Minimum Reading | 1″/5″ selectable | 1″/5″ selectable | |
| Accuracy | 2″ | 2″ | |
| Detection Method | Horizontal and vertical plates: | Horizontal and vertical plates: | |
| diametric | diametric | ||
| Telescope | Imaging | Erect | Erect |
| Length | 152mm | 152mm | |
| Effective Aperture | Telescope: 45mm, EDM: 47mm | Telescope: 45mm, EDM: 47mm | |
| Magnification | 30X | 30X | |
| Field of View | 1°30′ | 1°30′ | |
| Resolution | 3″ | 3″ | |
| Minimum Focus Distance | 1.5m | 1.5m | |
| System Parameters | Compensator | Dual-axis liquid-electric electronic | Dual-axis liquid-electric electronic |
| compensator (±6′, 1″ accuracy) | compensator (±6′, 1″ accuracy) | ||
| Data Communication | USB | Yes | Yes |
| Level Vials | Tube Level | 30”/2mm | 30”/2mm |
| Circular Level | 8′/2mm | 8′/2mm | |
| Optical Plummet/Laser Plummet | Imaging | Erect | Erect |
| (Optional) | Magnification | 3x | 3x |
| Focus Range | 0.3m~ | 0.3m~ | |
| Field of View | 5° | 5° | |
| Display | Type | 160×96 dot matrix high-definition, | 160×96 dot matrix high-definition, |
| high-brightness display | high-brightness display | ||
| Size | 2.6 inches | 2.6 inches | |
| Number Display | Max: 99999999.999, Min: 1mm | Max: 99999999.999, Min: 1mm | |
| Onboard Battery | Power Source | Rechargeable lithium battery, | Rechargeable lithium battery, |
| 3000mAh | 3000mAh | ||
Voltage |
DC 7.4V | DC 7.4V | |
| Continuous Operating Time | 8 hours | 8 hours | |
| Dimensions and Weight | Size | 206mm×180mm×353mm | 206mm×180mm×353mm |
| Weight | 5.4Kg | 5.4Kg |
