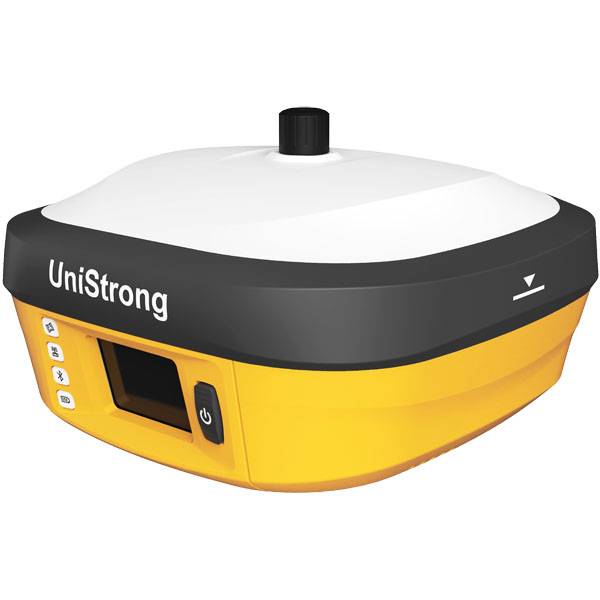

G990Ⅱ-GNSS Base Station

The G990II is equipped with a powerful built-in radio station, featuring enhanced range and compatibility. It is equipped with a high-capacity 13600mAh battery that supports PD fast charging, effectively addressing long-term usage needs. The device has an advanced IMU tilt measurement system for higher accuracy and convenient operation. In addition, the G990II also includes a high-brightness industrial-grade touch screen with intuitive gesture control function, enhancing user experience in harsh outdoor environments. This instrument sets new standards for precision, durability, and technological integration in the surveying profession.

Product Details:

GNSS Channels 800
Satellite Signals GPS: L1C/A,L1C,L1P,L2C,L2P,L5
GLONASS: G1P1, G1OC, G2OC, G2P2, G3OC
BDS: B1I, B2I, B3I, B1C, B2a, B2b, ACEBOC
Galileo: E1BC, E5a, E5b, ALTBOC, E6
QZSS: L1C/A, L1C, L2C, L5, LEX
SBAS: L1, L5
India IRNSS: L5
L-Band
Update Rate 50Hz
Accuracy Static H: (2.5+0.5×10-6D)mm ; V: (5+0.5×10-6D)mm
RTK H: (8+1×10-6D)mm;   V: (15+1×10-6D)mm
IMU Tilt Survey 2cm (@30°Tilt degree)
IMU update rate 400 Hz
Electric Bubble Enable
Power supply Battery capacity Built-in non-replaceable battery, 7.2V/13600mAh, 97.92Wh
Life Timer 12 hours at room temperature
External power DC 9-28V
source
System OS Linux 4.1.18
Memory 512MB LPDDR3,32G EMMC
Bluetooth 2.1+EDR /4.0 Dual, (Class 2)
WIFI 802.11 b/g/n
Network LTE FDD: B1/B3/B8/LTE TDD: B38/B39/B40/B41/TDSCDMA: B34/B39 WCDMA: B1/B8/CDMA 1x/EVDO: BC0/GSM: 900/1800
WebUI To manage the status and settings, upgrade firmware, data download
Datalink UHF Radio TRM600, TX&RX, Frequency: 410-470MHz, 7w radio, work range 12KM
Protocol SATEL/ TrimTalk/TRIMMARK3/PCC-GMSK/GEOTALK/TT450S/South/ HiTarget and etc.
Output format RTCM2.1, 2.3, 3.0, 3.2, 3.3, CMR, CMR+, RTCA

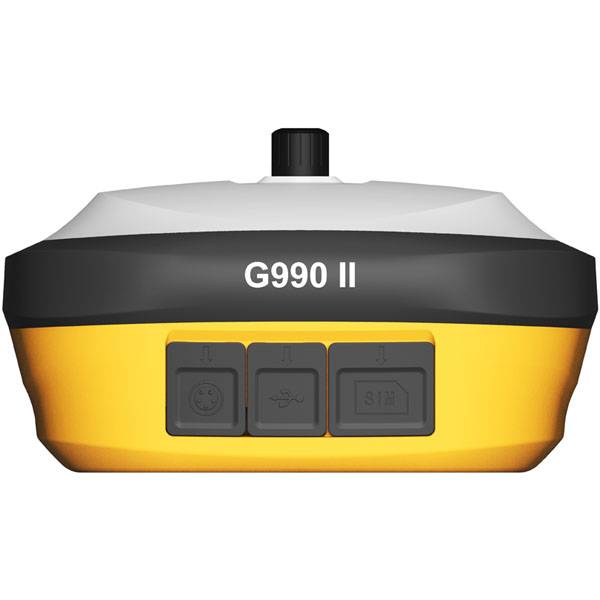

Type-C Port Direct charging, data transmission. Support PD first charge
5Pin Port Used to connect external power and external radio
SIM Card slot Install Nano SIM Card, Side, Flip
Physical Size 154mm Length×154mm Width×76mm Height

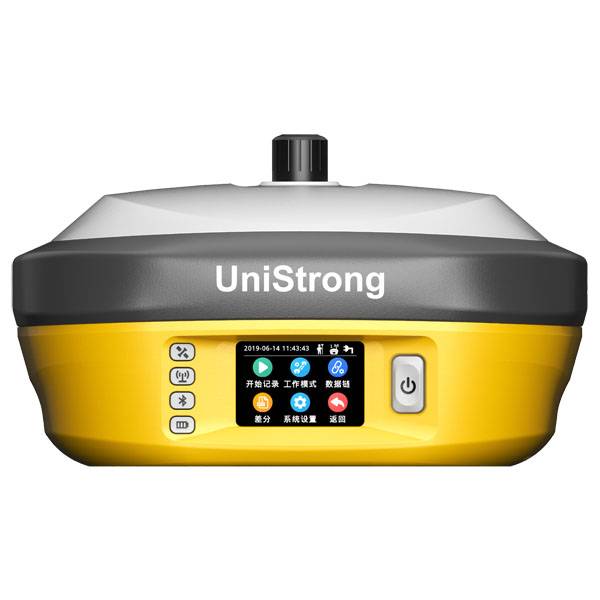

Screen 360 x 250 capacitive touch screen, multi-touch
Environment Work Temperature -45℃ ~ +75℃
Storage -55℃ ~ +85℃
Temperature
Waterproof

& dustproof

IP68
Humidity anti-condensation 100%
