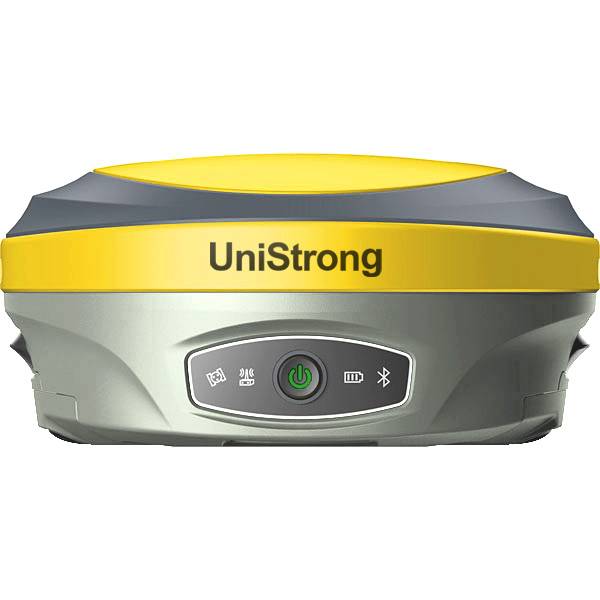

The G970II PRO stands out with its robust “Swan” anti-interference technology, ensuring unparalleled GNSS performance even in complex electromagnetic environments. It inherits advanced fusion positioning technology from its predecessor, integrating a high-precision IMU inertial navigation module with GNSS for groundbreaking tilt measurement experiences in RTK products. Notably, it excels in power efficiency, boasting a 30% reduction in consumption due to high-integration chips and optimized power management, supported by dual detachable smart lithium batteries for extended operations.
The device’s innovative features set a new industry standard: Handbook Flash Association Pairing for seamless connectivity without NFC hardware, a voice-off safety lock providing real-time reminders and secure shutdown, and a smart base station feature for immediate alerts and status checks. Additionally, it’s universally compatible with various radio protocols, preserving the value of your assets.

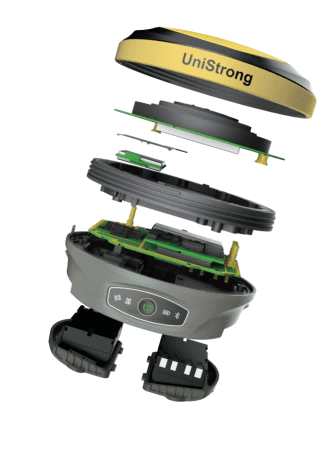

The G970II PRO also houses an integrated four-in-one combination antenna, significantly reducing internal interference and enhancing the signal-to-noise ratio by over 30%. This integration symbolizes a leap in industrial product design, combining functionality, user-friendliness, and aesthetic appeal. Its cutting-edge technology and user-centric design make it an essential tool for professionals seeking precision and reliability in surveying and RTK applications.
| GNSS Performance | Number of channels | 800 |
| Tracking Characteristics | GPS: L1C/A,L1C,L1P,L2C,L2P,L5;
GLONASS: G1P1, G1OC, G2OC, G2P2, G3OC BDS: B1I, B2I, B3I, B1C, B2a, B2b, ACEBOC Galileo: E1BC, E5a, E5b, ALTBOC, E6 QZSS: L1C/A, L1C, L2C, L5, LEX SBAS: L1, L5 IndiaIRNSS: L5 |
|
| Accuracy Indexes | Static | H: 2.5 mm±1ppm , V: 5 mm±1ppm |
| RTK | H: 8 mm±1ppm, V:15 mm±1ppm | |
| Tilt accuracy | 2cm (tilted 60°) | |
| Initialization time | 8s | |
| Reliability Initialization | 99.9% | |
| System Configuration | Operating System | Linux |
| Built-in storage | 8GB, supports MicroSD storage expansion | |
| WiFi | 802.11 b/g/n | |
| Bluetooth | V2.1+EDR/V4.1Dual,Class2 | |
| Electronic bubble | support | |
| Tilt measurement | Fusion positioning, 400Hz update frequency | |
| Middle pole | No need for a dedicated center pole | |
| Data link | UHF radio station | Built-in two-way radio, adjustable to 1W/2W |
| Radio Protocol | Support GeoTalk、SATEL, PCC-GMSK、TrimTalk,、TrimMark、 South、Hi-Target | |
| network | 4G-LTE, TE-SCDMA, CDMA(EVDO 2000), WCDMA, GSM(GPRS) | |

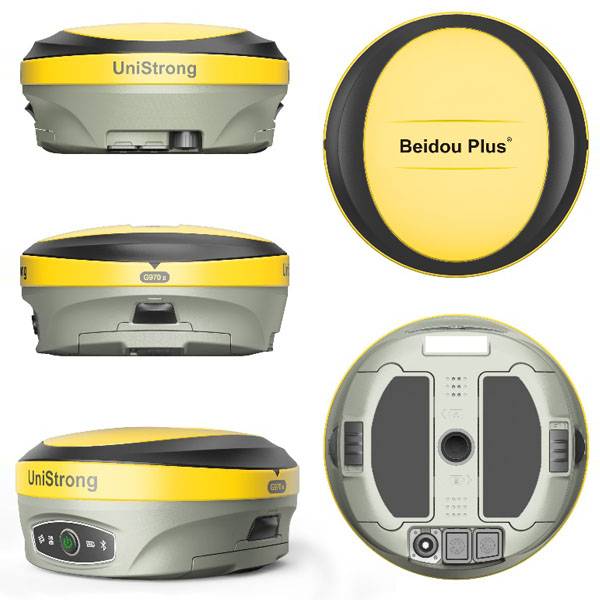

| Physical Properties | Interface | 1*TNC Radio Antenna, 1*5Pin(Power & RS232),1*7Pin (USB 81 RS232) |
| Button | 1 Power Button | |
| Indication Light | 4 Indication Lights | |
| Size | Φ156mm * H 76mm | |
| Weight | 1.2kg | |
| Power characteristics | Battery capacity | 7.2V, 24.5Wh(standard two batteries) |
| Life Timer | Static Survey: 15 hours, Rover RTK survey: 12h | |
| External power source | DC 9-18V, with overvoltage protection | |
| Environmental indicators | Work Temporature | -35℃ ~ +65℃ |
| Storage Temporature | -55℃ ~ +80℃ | |
| waterproof&dustproof | IP67 | |
| Humidity | 100% anti-condensation |
